FCC Details
1. Introduction to Certification
The full name of FCC is Federal Communications Commission, and the Chinese is the Federal Communications Commission of the United States to ensure the safety of radio and wire communication products related to life and property.
2. Certification mark
3. Certification category
1. FCC SDOC Supplier Declaration of Conformity
2. FCC CERTIFICATION ID certificate
4. Product Range
1.FCC SDOC: Applicable to ordinary electronic products, that is, products without wireless functions, such as monitors, lamps, power supplies, home appliances, etc.
2.FCC ID: Wireless products, such as Bluetooth products, tablet computers, wireless keyboards, wireless mice, wireless readers, wireless transceivers, wireless walkie-talkies, wireless microphones, remote controls, wireless network devices, wireless image transmission systems and others Low-power wireless products, 2G mobile phones, 3G mobile phones, 3.5G mobile phones, DECT mobile phones (1.8G, 1.9G frequency band), wireless walkie-talkies, etc.
5. Certification Standards
| product | standard test |
| Information technology ITE/audio and video power supplies/products |
FCC PART 15B |
| Lighting products |
FCC PART 15B FCC PART 18 |
| Home Appliances |
FCC PART 15B |
| Industrial, scientific, medical products |
FCC PART 18 |
| Energy storage products |
FCC PART 15B |
| Wireless products |
FCC PART 15C/15E FCC PART 22/24/27 |
6. Test items
1. FCC SDOC certification
conduction and radiation
2. FCC ID certification
Conducted disturbance, radiated disturbance, maximum output power, 20db bandwidth, channel spacing, number of frequency hopping channels, dwell time, sideband, antenna requirements, etc.
7. Required information
1. FCC SDOC certification
(1) Application form
(2) Equipment model technical specification or technical manual, internal maximum operating frequency of the product, circuit schematic diagram and instruction manual
(3) label
(4) Declaration of conformity of local suppliers in the United States
2. FCC ID certification
(1) 731 application form
(2) FCC ID number
(3) FCC authorization letter, FCC confidential letter
(4) Block diagram, circuit diagram
(5) Line description
(6) Instruction manual, technical specifications
(7) Product nameplate and other information

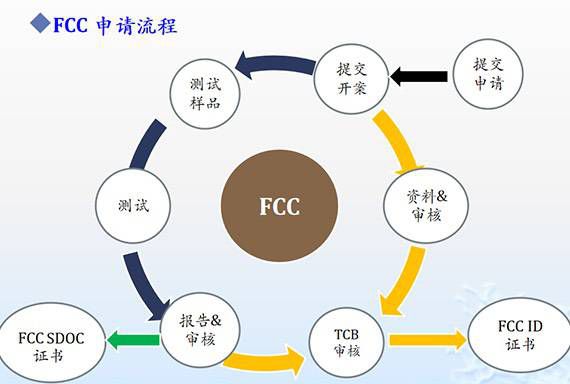

8. Certification process
9. Specifications for the use of logos
·PNG Medium (500x500px @72ppi, transparent background)
One PNG medium (500x500px @72ppi, transparent background)
·PNG Large (2080x2080px @300ppi, transparent background)
1 PNG Large (2080x2080px @300ppi, transparent background)
·JPG Medium (500x500px @72ppi, white background)
1 JPG Medium (500x500px @72ppi, white background)
·JPG Large (2080x2080px @300ppi, white background)
1 JPG Large (2080x2080px @300ppi, white background)
·SVG (Scalable Vector Graphics, transparent background)
Scalable vector graphics, transparent background·EPS (Encapsulated Postscript, transparent background)
Package postscript, transparent background
·AI (Adobe Illustrator, transparent background)
Transparent Background Adobe Illustrator
|
U.S. |
|
·Test content: electromagnetic compatibility + wireless Applicable products: 9K-3000GHz electronic and electrical products Whether mandatory: Yes ·Factory Inspection: None ·Local agent: required ·Plug type: US standard ·Voltage requirements: civilian AC 120V 60Hz, industrial voltage from 227V to 480V ·Application method: direct application ·Certificate holder: ·Certificate validity period: long-term ·Official website: ·Certificate query website: |
