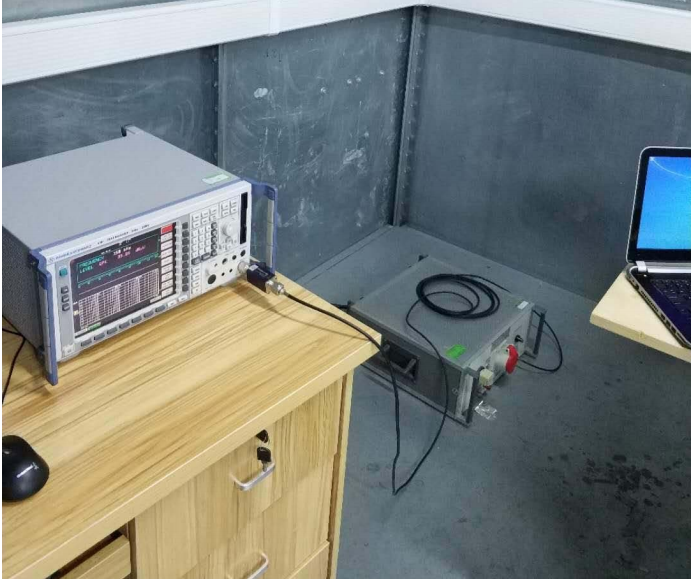

    Conducted harassment test

    Conducted harassment test

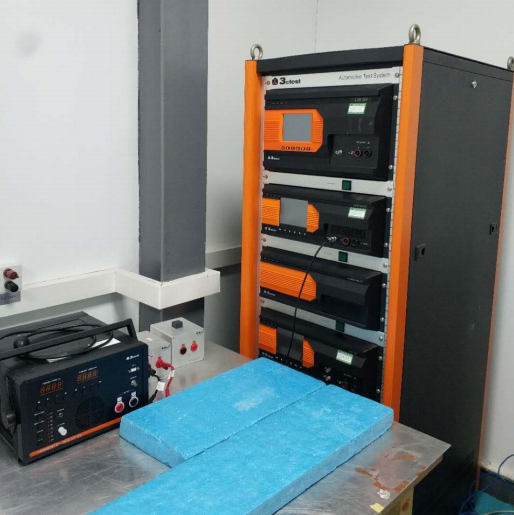

    7637 test

    7637 test

    Contact information

    Free service hotline

    Tel：188-2379-9985

    Email：info@jtl-lab.org

    Address：Area 2-1102D, Building T2, Haigu Science and Technology Building, Shiyan Street, Bao'an District, Shenzhen

    Current column：Bluetooth WiFi testing

    Back to list

    Bluetooth WiFi testing

    Bluetooth technology is a short-range wireless transmission technology that is widely used in various electronic products. The Bluetooth specification promulgated by the Bluetooth standardization organization SIG has been developed to B…

    Current column：Bluetooth WiFi testing
    HotLine 188-2379-9985
    Add WeChat consultation

    Add WeChat consultation

    Online Application Consultation
    Bluetooth WiFi testing detailed introduction

    1. Bluetooth WiFi service products

    1. Bluetooth function products: Bluetooth modules, Bluetooth chips, Bluetooth headsets, Bluetooth speakers, Bluetooth watches, smart phones, Bluetooth keyboards, Bluetooth mice, interconnections between various short-distance devices...

    2. WiFi-enabled products: smartphones, tablets, printers, game consoles, smart TVs, laptops and routers...



    2. Bluetooth WiFi product certification testing standards

    Radio Frequency Test Standards

    Product

    Working frequency

    CE-RED certification

    FCC ID certification

    ISED certification

    RCM certification

    TELEC certification

    SRRC certification

    WIFI2.4GHz products

    2400-2483.5MHz

    EN300328

    Part15C

    RSS-247

    EN300328
    AS/NZSS4268

    ARIB-STD-T66

    Xinbuwu [2002] No. 353

    WIFI5GHz products

    5150-5250MHz（Band1）
    5250-5350MHz（Band2）
    5470-5725MHz（Band3）
    5725-5875MHz（Band4）

    EN301893

    Part15E

    RSS-247

    EN301893
    AS/NZSS4268

    ARIB-STD-T71

    Xinbuwu [2002] No. 277
    Xinbuwu [2012] No. 620

    WIFI6GHz products (including WIFI6E and WIFI7 technology)

    5925-6425MHz（Band5）
    6425-6525MHz（Band6）
    6525-6875MHz（Band7）
    6875-7125MHz（Band8）

    EN303687

    Part15E

    RSS-248

    EN303687
    AS/NZS4268

    Article 2，Paragraph 1，Item 79/80

    none

    Bluetooth products

    2400-2483.5MHz

    EN300328

    Part15C

    RSS-247

    EN300328
    AS/NZS4268

    ARIB-STD-T66

    Xinbuwu [2002] No. 353



    Bluetooth WIFI product safety regulations and electromagnetic compatibility standards are determined according to the category of terminal products. Common terminal product test standards are as follows:

    Electromagnetic Compatibility Standards
    Product CategoryCISPR/IEC standardEuropean standardUS/Canadian StandardAustralian StandardsChinese standardKorean StandardJapanese standard
    information technology, audio and videoCISPR 32
    CISPR 35
    IEC 61000-3-2
    IEC 61000-3-3    		EN 55032
    EN 55035
    EN 61000-3-2
    EN 61000-3-3    		FCC PART 15B
    ICES-003    		AS/NZS CISPR 32GB/T 9254.1
    GB/T 9254.2
    GB 17625.1
    CNS 15936    		KS C 9832
    KS C 9835    		J55032(H29)
    lampsCISPR 15
    IEC 61547
    IEC 61000-3-2
    IEC 61000-3-3    		EN 55015
    EN 61547
    EN 61000-3-2
    EN 61000-3-3    		FCC PART 15B
    FCC PART 18
    ICES-005    		AS CISPR 15
    AS/NZS CISPR 32    		GB/T 17743
    GB/T 18595
    GB 17625.1
    CNS 14115    		KS C 9815
    KS C 9547    		J55015(H29)
    home appliancesCISPR 14.1
    CISPR 14.2
    IEC 61000-3-2
    IEC 61000-3-3    		EN 55014-1
    EN 55014-2
    EN 61000-3-2
    EN 61000-3-3    		FCC PART 15B AS CISPR 14.1GB 4343.1
    GB 17625.1
    GB 17625.2
    CNS 13783-1    		KS C 9814-1
    KS C 9814-2    		J 55014
    industry, science, medical CISPR 11
    IEC 61000-4
    series of basic standards
    IEC 61000-3-2
    IEC 61000-3-3    		EN 55011
    EN 61000-4
    series basic standards
    EN 61000-3-2
    EN 61000-3-3    		FCC PART 18
    ICES-001    		US CISPR 11GB 4824
    GB 17625.1
    GB 17625.2
    CNS 13803    		KS C 9811
    KS C 9610-4
    series basic standards    		J 55011
    common standardIEC 61000-6-1
    IEC 61000-6-2
    IEC 61000-6-3
    IEC 61000-6-4    		EN 61000-6-1
    EN 61000-6-2
    EN 61000-6-3
    EN 61000-6-4    		FCC PART 15B
    ICES-003    		AS/NZS 61000.6.1
    AS/NZS 61000.6.2
    AS/NZS 61000.6.3
    AS/NZS 61000.6.4    		GB/T 17799.1
    GB/T 17799.2
    GB 17799.3
    GB 17799.4    		--



    Safety standard
    Information technology ITE productsIEC 60950-1
    IEC 62368-1    		IN 62368-1UL 62368-1AS/NZS 62368.1GB 4943KC 60950-1
    KC 62368-1    		Part 8
    Part 12
    J 60950-1
    J 62368-1
    Audio and video AV productsIEC 60065
    IEC 62368-1    		IN 62368-1UL 62368-1AS/NZS 62368.1GB 8898KC 60065
    KC 62368-1    		Part 8
    Part 12
    J 60065
    J 62368-1
    Lighting productsIEC 60598-1
    IEC 60598-2-XX    		EN 60598-1
    EN 60598-2-XX    		UL 153
    UL 1598
    UL 8750
    UL 1786
    UL 1573
    UL 588
    UL 2108
    UL 924    		AS/NZS 60598.1
    AS/NZS  60598.2.XX    		GB 7000-1
    GB 7000.XXX    		KC 60598-1
    KC 60598-2-XX    		Part 8
    Part 12
    J 60598-1
    J 60598-2-XX
    Home AppliancesIEC 60335-1
    IEC 60335-2-XX    		EN 60335-1
    EN 60335-2-XX    		UL 1007
    UL 1005
    UL 1028
    UL 1083
    UL 982
    UL 1026    		AS/NZS 60335.1
    AS/NZS 60335.2.XX    		GB 4706.1
    GB 4706.XX    		KC 60335-1
    KC 60335-2-XX    		Part 8
    Part 12
    J 60335-1
    J 60335-2-XX
    medical productsIEC 60601-1IN 60601-1UL 60601-1AS/NZS 60601.1- -KC 60601-1don't watch eight
    Industrial (transformer) productsIEC 61558-1
    IEC 61558-2-XX    		EN 61558-1
    EN 61558-2-XX    		UL 1310
    UL 1012
    UL 506
    UL 1561
    UL 1562
    UL 1585
    UL 1876
    UL 1411
    UL 397
    UL 697    		AS/NZS 61558.1
    AS/NZS 61558.2.XX    		GB 19212.1
    GB 19212.XX    		KC 61558-1
    KC 61558-2-XX    		Part 8
    Part 12
    J 61558-1
    J 61558-2-XX
    Electric toolsIEC 60745-1
    IEC 60745-2-XX    		EN 60745-1
    EN 60745-2-XX    		UL 60745-1AS/NZS 60745.1
    AS/NZS 60745.2.XX    		GB 4706.1
    GB 4706.XX    		KC 60745-1
    KC 60745-2-XX    		Other Table Eight
    Other Table Twelve
    J 60745-1
    J 60745-2-XX
